Product Short Description
Double the flow. Same compact footprint.
The 500L/H Integrated Sand & Carbon RO system combines sand and carbon filtration into a single tank — saving 40% space. Features dual ULP21-4040 membranes delivering 500L/H (12,000 GPD). Perfect for small factories, hotels, schools, and containerized water stations.
Product Highlights
| 📦 Space-Saving Integrated Design | ⚡ Dual ULP Membranes |
|---|---|
| Sand + Carbon in ONE tank — saves 40% space compared to traditional two-tank systems. Ideal for compact installations. | Two ULP21-4040 low-pressure membranes. 500L/H output. Desalination rate ≥97%. 220V/1.5KW. |
| 🔧 Complete 3-Stage Filtration | 🏭 Compact & Robust |
|---|---|
| Integrated Sand/Carbon + Cartridge filter + RO membranes. Efficient protection for tap water and low TDS well water. | 950×625×1725mm · 140kg. Fits in containerized stations, small mechanical rooms, and outdoor cabinets. |
| 🔌 Plug & Play | ✅ CE Certified |
|---|---|
| Pre-assembled on stainless steel frame. Connect water and power. Start within 4 hours. | 1-year warranty. Factory direct from China. OEM customization available. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FRO-214-0.5T-13SC |
| Type | Skid-Mounted RO System with Integrated Sand/Carbon |
| Flow Rate | 500 L/H (≈ 12,000 GPD) |
| Desalination Rate | ≥97% |
| Recovery Rate | 50-65% (Adjustable) |
| Membrane | ULP21-4040 × 2 |
| Tank Configuration | 1 Green Tank (Integrated Sand/Carbon) + 3 Blue Tanks (Cartridge + RO + RO) |
| Pre-treatment | Integrated Sand/Carbon + Cartridge |
| Voltage | 220V / 50Hz (380V/60Hz optional) |
| Power | 1.5 KW |
| Frame | Stainless Steel, Skid-Mounted |
| Dimensions | 950×625×1725 mm |
| Weight | 140 kg |
| Feed Water Source | Tap water, well water, groundwater (TDS ≤ 1000 ppm) |
| Warranty | 1 Year |
| Certification | CE |
Filtration Process

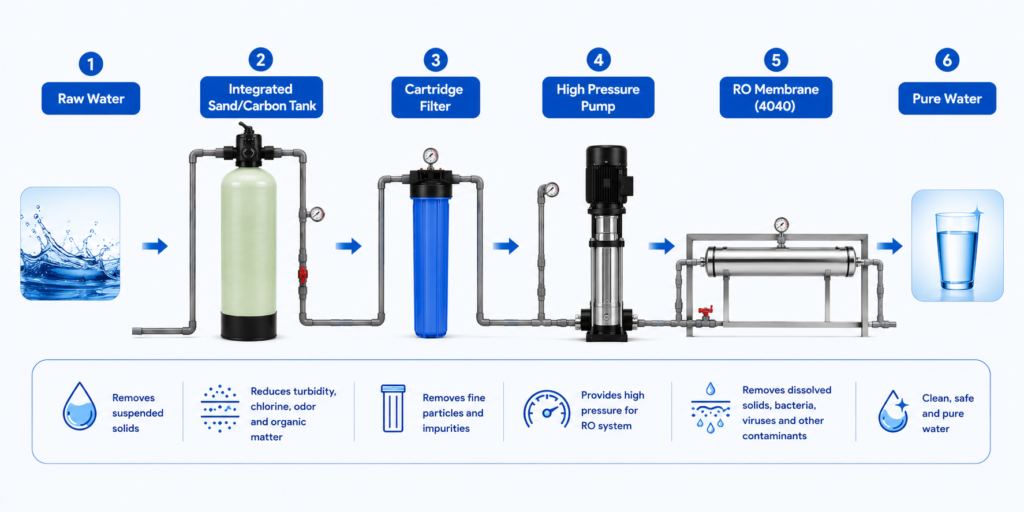

Raw Water → Integrated Sand/Carbon Tank → Cartridge Filter → High Pressure Pump → RO Membrane → Pure Water
| 1 | Integrated Sand/Carbon | Removes sediment, chlorine, odor — all in ONE tank |
| 2 | Cartridge Filter | 5μm fine filtration, protects RO membrane |
| 3 | RO Membrane | Removes up to 99% of dissolved salts, bacteria, viruses |
What’s Included in the System?
| Integrated Sand/Carbon Tank (FRP with auto valve) | 1 (Green) |
| Cartridge Filter (20 inch) | 1 |
| RO Membrane (ULP21-4040) | 1 |
| High Pressure Pump (1.1KW, 220V) | 1 |
| Stainless Steel Frame (304, Skid-Mounted) | 1 |
| PLC Control Panel | 1 |
| Piping & Fittings | 1 set |
| Pressure Gauges & Flow Meters | 1 set |
| Brine Tank | 1 |
Note: Raw water tank and pure water tank are not included. They can be purchased separately.
Key Features
Feature 1: Integrated Sand & Carbon — Saves 40% Space
| Feature | Benefit |
|---|---|
| One tank instead of two | Saves 40% floor space |
| Fewer connections | Lower leakage risk |
| Pre-assembled | Faster installation |
Perfect for: Containerized water stations, small mechanical rooms, outdoor cabinets, vehicle-mounted systems.
Key Features
Feature 1: Integrated Sand & Carbon — Saves 40% Space
| Feature | Benefit |
|---|---|
| One tank instead of two | Saves 40% floor space |
| Fewer connections | Lower leakage risk |
| Pre-assembled | Faster installation |
Perfect for: Containerized water stations, small mechanical rooms, outdoor cabinets, vehicle-mounted systems.
Feature 2: Dual Membranes — 500L/H Stable Output
- Two ULP21-4040 membranes in parallel
- Total membrane area: 14.4 m²
- Desalination rate ≥97%
- Low pressure operation (8-12 bar), energy saving
Feature 3: 140kg — Stable Yet Portable
- Heavy enough for stable operation (140kg)
- Compact dimensions: 950×625×1725mm
- Fits in a 20FT container
Feature 4: 3-Stage Filtration
- Integrated Sand/Carbon: removes sediment, chlorine, odor
- Cartridge filter: 5μm fine filtration
- Dual RO membranes: final purification
Applications
| Application | Description |
|---|---|
| 📦 Containerized Water Station | Compact design fits perfectly in shipping containers |
| 🏭 Small Factory | Process water, cleaning water, boiler feed water |
| 🏨 Small Hotel | Guest drinking water, kitchen water, laundry |
| 🏫 Small School | Safe drinking water for students |
| 🏠 Residential Community | Centralized water supply |
Space-Saving Comparison
| Comparison | Traditional 2-Tank System | This Integrated System |
|---|---|---|
| Number of pre-treatment tanks | 2 (Sand + Carbon separate) | 1 (Sand + Carbon combined) |
| Floor space | 100% | Save 40% |
| Piping connections | More | Fewer — lower leak risk |
| Installation time | Standard | 30% faster |
FAQ
1. What does “integrated sand & carbon” mean?
The sand and carbon filtration media are combined in ONE tank instead of two separate tanks. This saves 40% floor space without reducing filtration effectiveness.
2. What is the daily output?
500 L/H equals approximately 12,000 gallons per day (about 12 tons), enough for 1,000-1,200 people.
3. Can this system fit in a shipping container?
Yes. The dimensions 950×625×1725mm fit easily in a standard 20FT container with room for operation and maintenance.
4. Does this system include a softener?
No. This system is designed for tap water or low TDS well water (TDS ≤ 1000 ppm). For high hardness water, please see our 6-tank model with softener.
5. What is the difference between 250L/H and 500L/H models?
The 500L/H model has double the output (500 vs 250 L/H), dual membranes (2 vs 1), higher power (1.5KW vs 1.1KW), and weighs 140kg vs 125kg.
6. What is the MOQ?
1 set. OEM customization available for bulk orders.
