⚡ Energy Saving
High efficiency operation
🔧 Easy Maintenance
Simple maintenance
🛠 Durable Design
Long service life
Product Short Description
Double the flow. Same reliable performance.

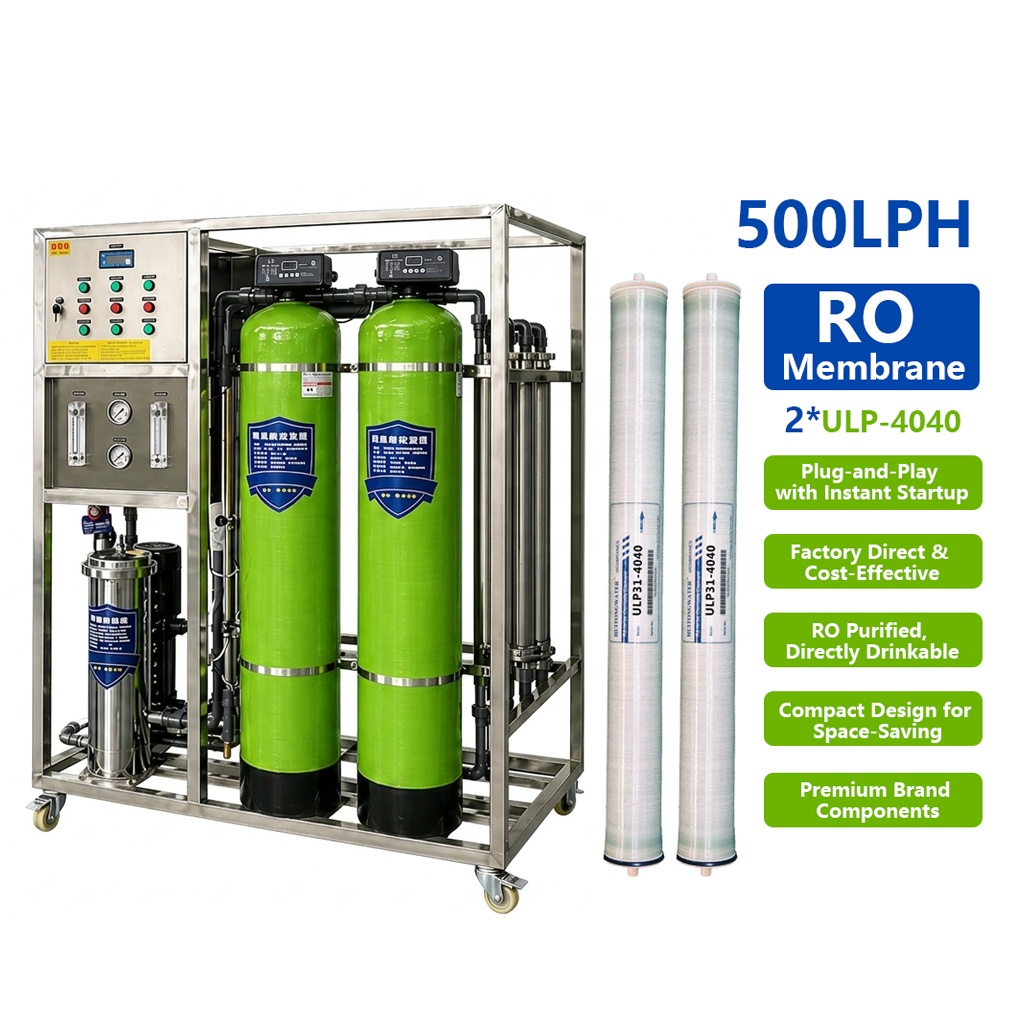

The 500L/H 3-Stage RO system features sand filter, carbon filter, and precision filter — essential pre-treatment for tap water and low TDS well water. Dual ULP21-4040 membranes deliver 500L/H (12,000 GPD). Perfect for small factories, hotels, schools, and restaurants.
Product Highlights
| 🧱 Complete 3-Stage Pre-treatment | ⚡ Dual ULP Membranes |
|---|---|
| Sand filter + Carbon filter + Cartridge filter. Essential protection for tap water and low TDS well water. | Two ULP21-4040 low-pressure membranes. 500L/H output. Desalination rate ≥97%. 220V/1.5KW. |
| 📦 Robust FRP Tanks | 🔌 Plug & Play |
|---|---|
| Three FRP tanks (sand, carbon, cartridge) with auto valves. Durable and corrosion-resistant. | Pre-assembled on steel frame. Connect water and power. Start within 4 hours. |
| 🔧 Simple Operation | ✅ CE Certified |
|---|---|
| PLC auto control with auto flush and low pressure protection. No dedicated operator needed. | 1-year warranty. Factory direct from China. OEM customization available. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FRO-214-0.5T-3 |
| Type | Skid-Mounted RO System (3 Tanks) |
| Flow Rate | 500 L/H (≈ 12,000 GPD) |
| Desalination Rate | ≥97% |
| Recovery Rate | 50-65% (Adjustable) |
| Membrane | ULP21-4040 × 2 |
| Tank Configuration | Sand Filter + Carbon Filter + Cartridge Filter (3 tanks) |
| Tank Material | FRP (Fiberglass Reinforced Plastic) |
| Pre-treatment | Sand + Carbon + Cartridge |
| Voltage | 220V / 50Hz (380V/60Hz optional) |
| Power | 1.5 KW |
| Frame | Steel, Skid-Mounted |
| Dimensions | 1500×700×1750 mm |
| Weight | 250 kg |
| Feed Water Source | Tap water, well water, groundwater (TDS ≤ 1000 ppm) |
| Warranty | 1 Year |
| Certification | CE |

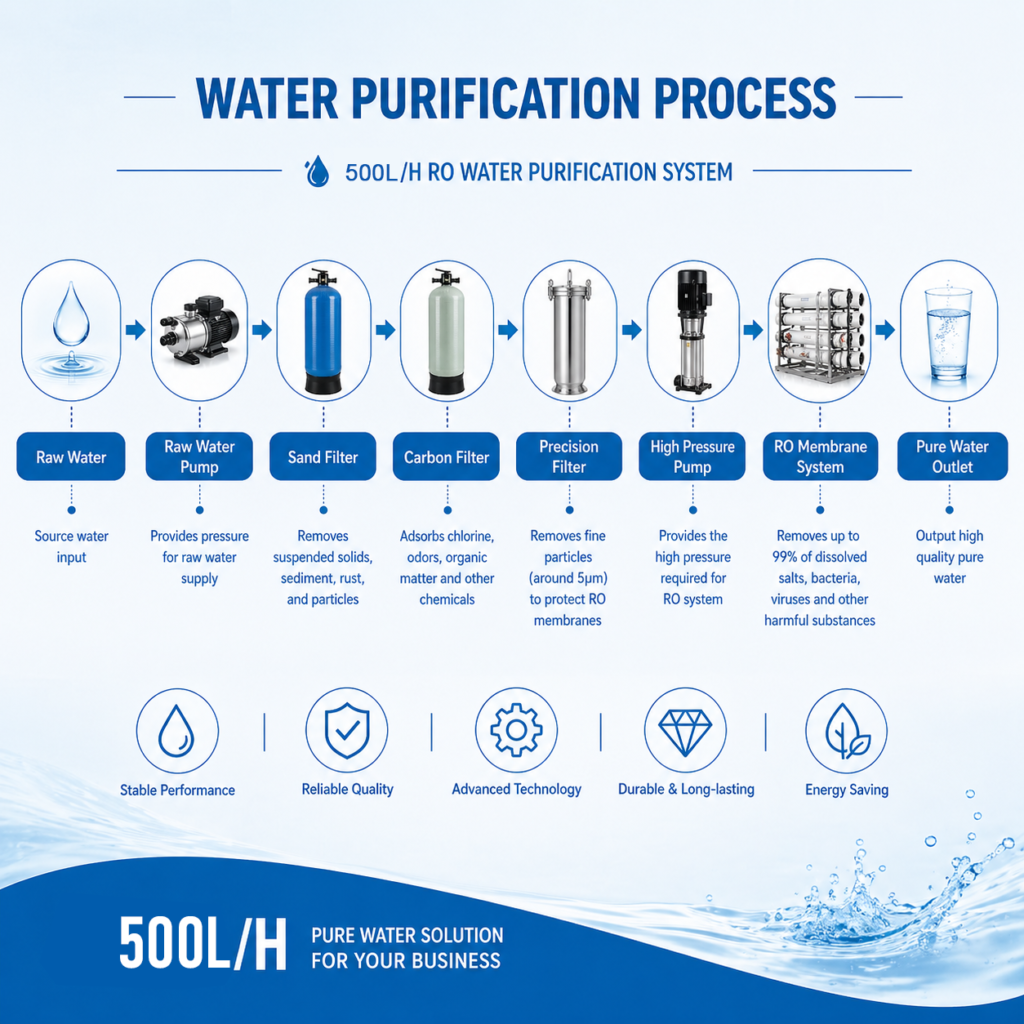

Filtration Process
Raw Water → Sand Filter → Carbon Filter → Cartridge Filter → High Pressure Pump → RO Membranes (×2) → Pure Water
| Stage | Component | Function |
|---|---|---|
| 1 | Sand Filter | Removes sediment, rust, suspended solids |
| 2 | Carbon Filter | Removes chlorine, odor, organic matter |
| 3 | Cartridge Filter | 5μm fine filtration, protects RO membranes |
| 4 | RO Membranes (×2) | Removes up to 99% of dissolved salts, bacteria, viruses |
What’s Included in the System?
| Component | Qty |
|---|---|
| Sand Filter (FRP with auto valve) | 1 |
| Carbon Filter (FRP with auto valve) | 1 |
| Cartridge Filter (20 inch) | 1 |
| RO Housing (FRP / SS) | 2 |
| RO Membrane (ULP21-4040) | 2 |
| High Pressure Pump (1.5KW, 220V) | 1 |
| Steel Frame (Skid-Mounted) | 1 |
| PLC Control Panel | 1 |
| Piping & Fittings | 1 set |
| Pressure Gauges & Flow Meters | 1 set |
Note: Raw water tank and pure water tank are not included. They can be purchased separately.
Key Features
Feature 1: 3-Stage Standard Pre-treatment
| Tank | Function |
|---|---|
| Sand Filter | Removes sediment, suspended solids |
| Carbon Filter | Removes chlorine, odor, organics |
| Cartridge Filter | 5μm fine filtration |
Essential protection for tap water and low TDS well water.
Feature 2: Dual ULP21-4040 Membranes
- Two membranes in parallel
- Total membrane area: 14.4 m²
- Desalination rate ≥97%
- Low pressure operation (8-12 bar), energy saving
- 500L/H stable output
Feature 3: 250kg Robust Construction
- Heavy-duty steel frame
- FRP tanks — corrosion-resistant, durable
- Stable operation for 24/7 production
Feature 4: PLC Auto Control
- One-key start
- Auto flush
- Low pressure protection
- Fault alarm display
Applications
Applications
| Application | Description |
|---|---|
| 🏭 Small Factory | Process water, cleaning water, boiler feed water |
| 🏨 Small Hotel | Guest drinking water, kitchen water, laundry |
| 🏫 Small School | Safe drinking water for students |
| 🍽️ Restaurant / Cafe | Kitchen water, ice making |
| 🏠 Residential Community | Centralized water supply |
FAQ
1. What is the daily output?
500 L/H equals approximately 12,000 gallons per day (about 12 tons), enough for 1,000-1,200 people.
2. What type of water can this system handle?
Tap water or low TDS well water (TDS ≤ 1000 ppm). For high TDS or high hardness water, please see our models with additional stages.
3. Are the tanks FRP or stainless steel?
Standard configuration uses FRP (fiberglass reinforced plastic) tanks — corrosion-resistant and cost-effective. Stainless steel tanks are available upon request.
4. Does this system include a softener?
No. This is a standard 3-tank system (sand + carbon + cartridge). For high hardness water, we recommend our 6-tank model with softener.
5. What is the difference between 250L/H and 500L/H models?
The 500L/H model has double the output (500 vs 250 L/H), dual membranes (2 vs 1), higher power (1.5KW vs 1.1KW), and heavier weight (250kg vs 200kg).
6. How long does installation take?
About 4 hours. The system comes pre-assembled — just connect water inlet, drain, and power.
7. What is the MOQ?
1 set. OEM customization available for bulk orders.
Why Buy From Us?
| ✅ Factory Direct | ✅ CE Certified | ✅ 1-Year Warranty |
|---|---|---|
| No middleman. Better price. | Internationally certified. | Peace of mind. |
| ✅ OEM Available | ✅ 24/7 Support | ✅ Global Shipping |
| Custom logo, color, voltage. | We’re here to help. | Delivered worldwide. |
