Product Highlights
| ⚡ High Flow Industrial Capacity | 🧱 Complete 3-Stage Pre-treatment | 🔧 Simple & Reliable |
|---|---|---|
| 4000L/H (96,000 GPD) output. Two ULP21-8040 large-area membranes. Desalination rate ≥97%. 380V/5.5KW. | Sand filter + Carbon filter + Cartridge filter. Essential protection for tap water and well water. | Standard 3-tank configuration. Fewer components, easier maintenance, lower operational cost. |
Product Short Description
High capacity. Fewer components. Industrial reliability.

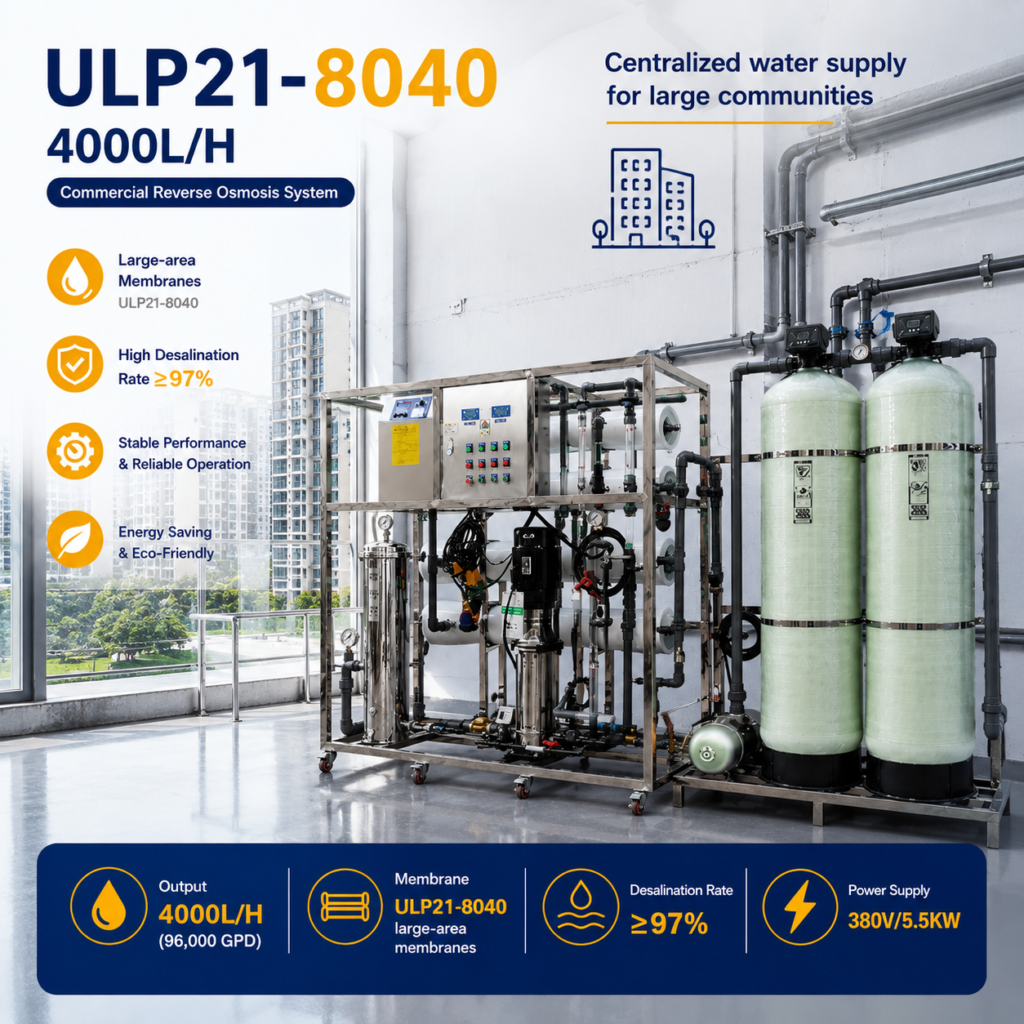

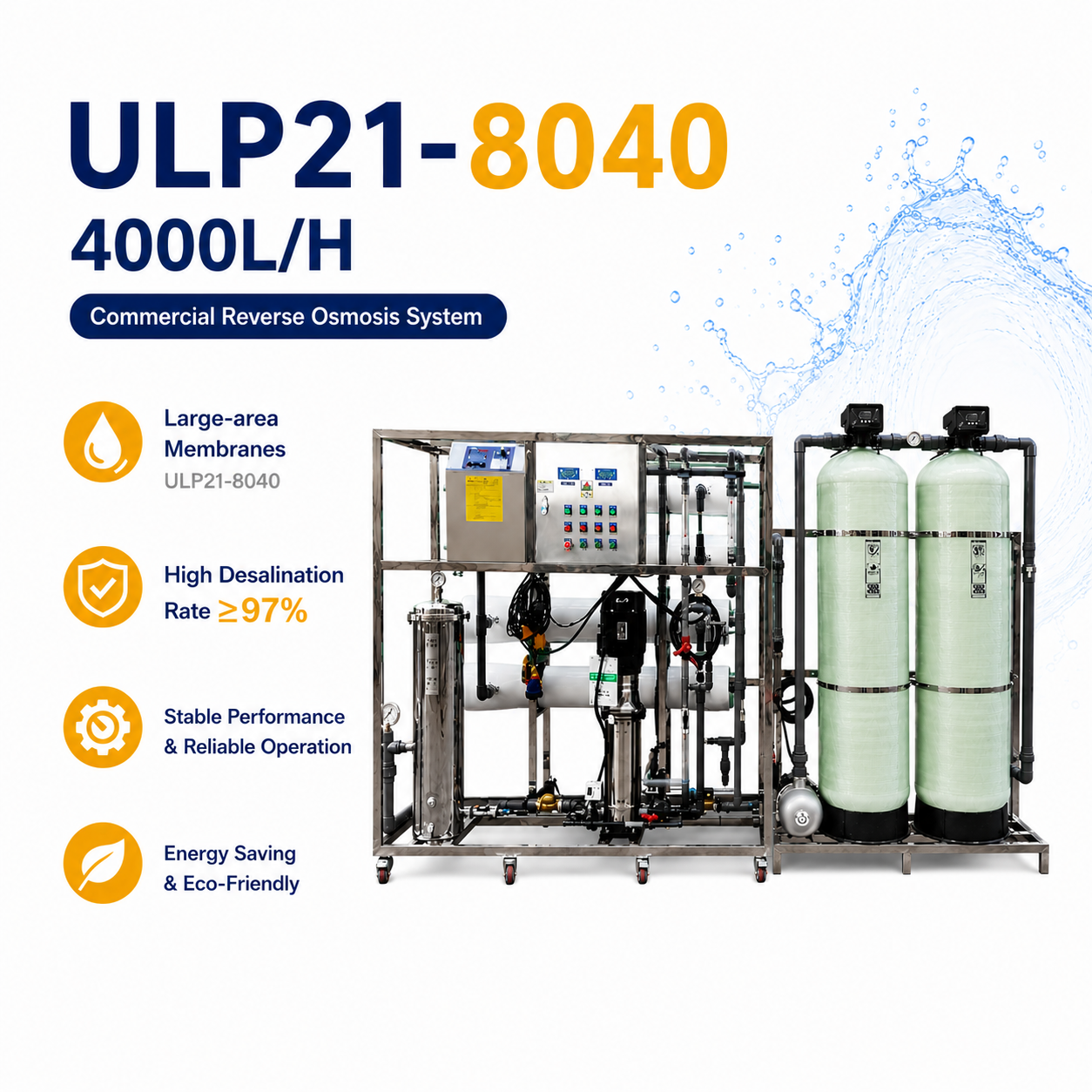

The 4000L/H 3-Stage RO system features sand filter, carbon filter, and precision filter — essential pre-treatment for tap water and low TDS well water. Two ULP21-8040 large-area membranes deliver 4000L/H (96,000 GPD) with minimal components. Perfect for large factories, industrial facilities, beverage plants, and commercial water production.
Product Highlights
| 🧱 Complete 3-Stage Pre-treatment | ⚡ High Flow 8040 Dual Membranes |
|---|---|
| Sand filter + Carbon filter + Cartridge filter. Essential protection for tap water and well water. | Two ULP21-8040 large-area membranes. 4000L/H output. Desalination rate ≥97%. 380V/5.5KW. |
| 📦 Simple 3-Tank Design | 🔌 Plug & Play |
|---|---|
| Three FRP tanks (sand, carbon, cartridge) with auto valves. Durable and corrosion-resistant. | Pre-assembled on steel frame. Connect water and power. Start within 4-6 hours. |
| 🏭 Industrial Grade | ✅ CE Certified |
|---|---|
| Heavy-duty steel frame. FRP tanks with auto valves. Built for 24/7 continuous operation. | 1-year warranty. Factory direct from China. OEM customization available. |
Applications
| Application | Description |
|---|---|

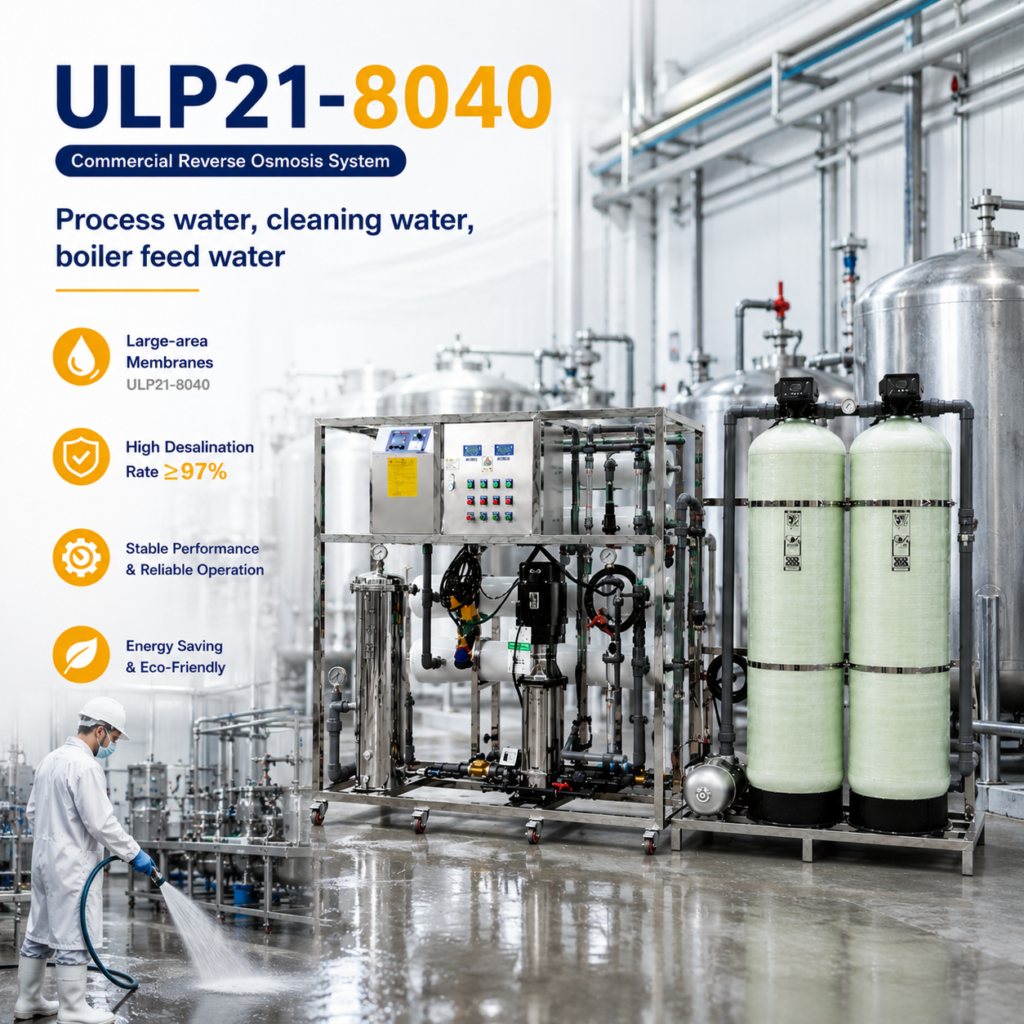

| 🏭 Large Factory | Process water, cleaning water, boiler feed water (softened water protects boilers) |
| 🏭 Beverage Plant | Production water for soft drinks, juices, beer |
| 🏨 Large Hotel | Guest drinking water, kitchen water, laundry, pool |
| 🏥 Large Hospital | Medical pure water, instrument cleaning, dialysis water |
| 🏘️ Large Community | Centralized water supply for large communities |

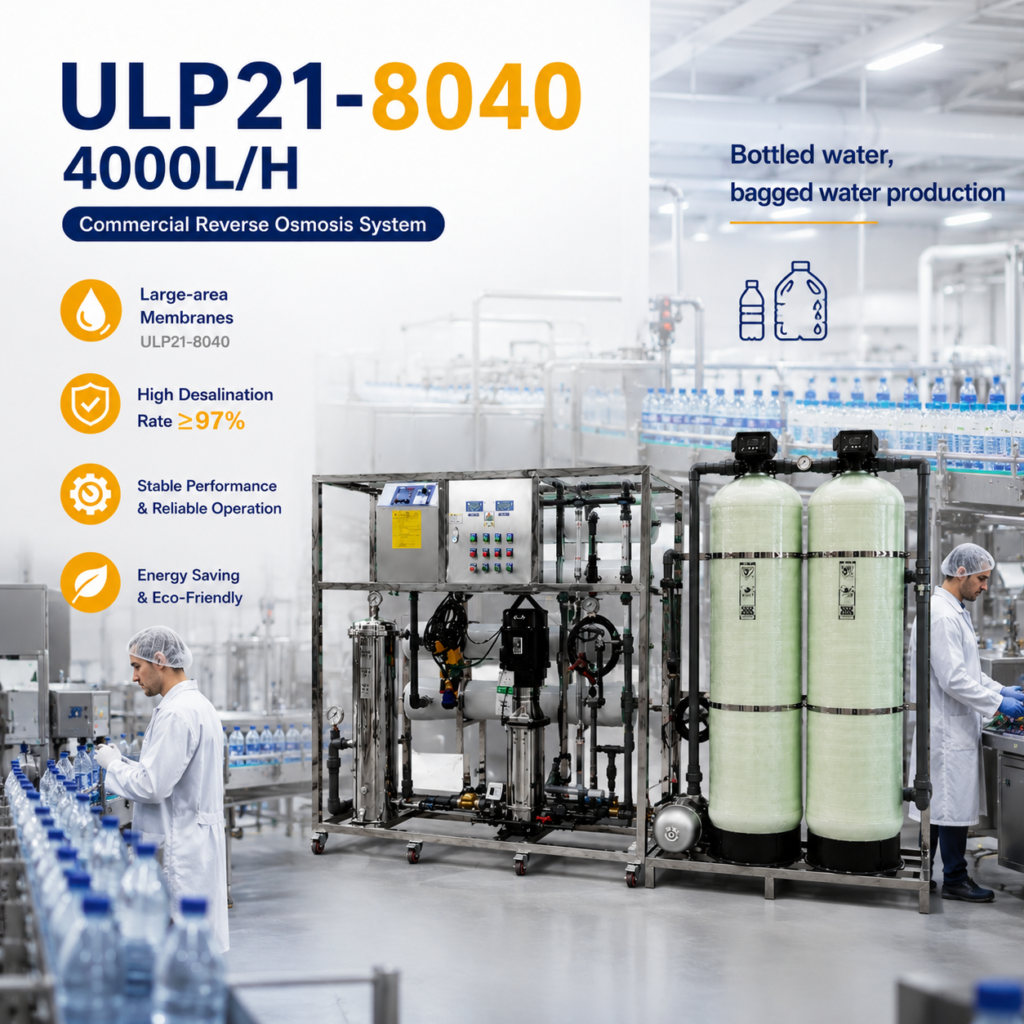

| 💧 Commercial Water Plant | Bottled water, bagged water production |
| 🌾 Industrial Agriculture | Irrigation, livestock drinking water |
Filtration Process

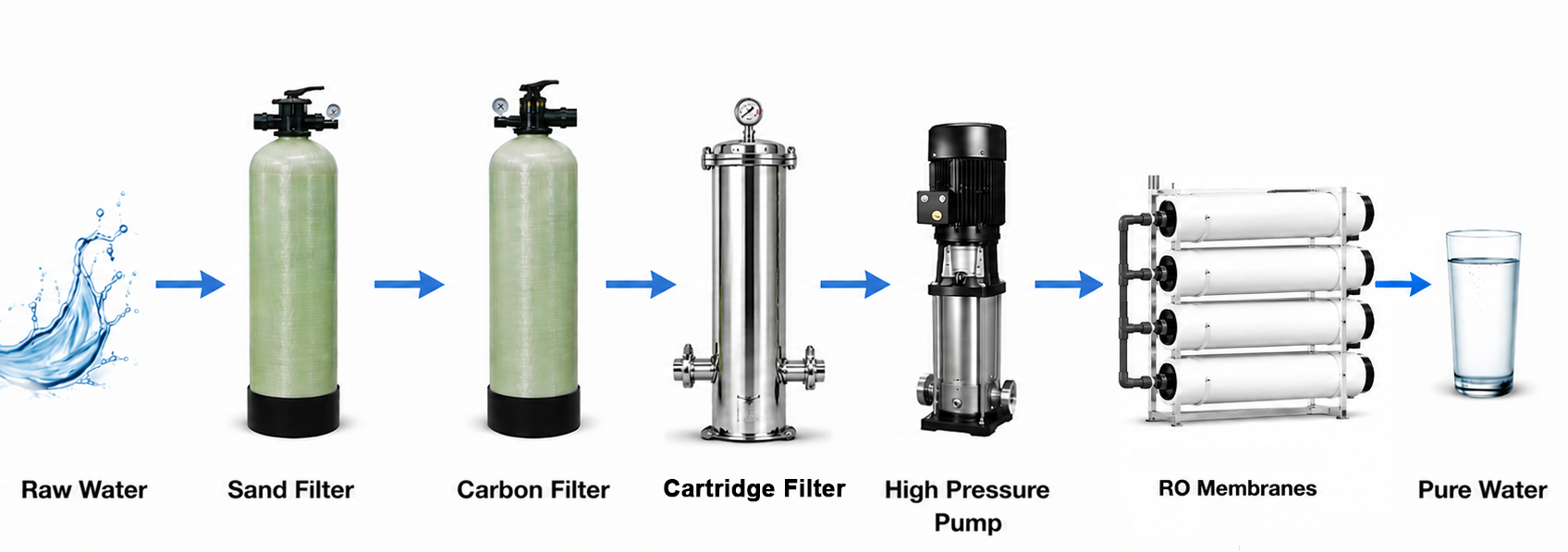

Raw Water → Sand Filter → Carbon Filter → Cartridge Filter → High Pressure Pump → RO Membranes (8040×2) → Pure Water
| Stage | Component | Function |
|---|---|---|
| 1 | Sand Filter | Removes sediment, rust, suspended solids |
| 2 | Carbon Filter | Removes chlorine, odor, organic matter |
| 3 | Cartridge Filter | 5μm fine filtration, protects RO membranes |
| 4 | RO Membranes (8040×2) | Removes up to 99% of dissolved salts, bacteria, viruses |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FRO-218-4T-3 |
| Type | Skid-Mounted RO System (3 Tanks) |
| Flow Rate | 4000 L/H (≈ 96,000 GPD) |
| Desalination Rate | ≥97% |
| Recovery Rate | 50-75% (Adjustable) |
| Membrane | ULP21-8040 × 2 |
| Single Membrane Area | 37.2 m² |
| Total Membrane Area | 74.4 m² |
| Tank Configuration | Sand Filter + Carbon Filter + Cartridge Filter (3 tanks) |
| Tank Material | FRP (Fiberglass Reinforced Plastic) |
| Pre-treatment | Sand + Carbon + Cartridge |
| Voltage | 380V / 50Hz (220V/60Hz optional) |
| Power | 5.5 KW |
| Frame | Steel, Skid-Mounted |
| Dimensions | 4000×800×2100 mm |
| Weight | 700 kg |
| Feed Water Source | Tap water, well water, groundwater (TDS ≤ 2000 ppm) |
| Warranty | 1 Year |
| Certification | CE |
What’s Included in the System?
| Component | Qty |
|---|---|
| Sand Filter (FRP with auto valve) | 1 |
| Carbon Filter (FRP with auto valve) | 1 |
| Cartridge Filter (20 inch) | 1 |
| RO Housing (FRP / SS) for 8040 | 4 |
| RO Membrane (ULP21-8040) | 4 |
| High Pressure Pump (4.5KW, 380V) | 1 |
| Steel Frame (Skid-Mounted) | 1 |
| PLC Control Panel | 1 |
| Piping & Fittings | 1 set |
| Pressure Gauges & Flow Meters | 1 set |
Note: Raw water tank and pure water tank are not included. They can be purchased separately.
Key Features
Feature 1: 4000L/H High Capacity Industrial Flow
- 96,000 GPD daily output
- Suitable for 8,000-10,000 people
- Perfect for large factories, industrial facilities, beverage plants, and commercial water production
Feature 2: 2 x ULP21-8040 Large-Area Membranes
- Two 8040 membranes in parallel
- Total membrane area: 74.4 m²
- Desalination rate ≥97%
- Low pressure operation (8-12 bar), energy saving
- 4000L/H stable output
Feature 3: Simple 3-Stage Pre-treatment
| Tank | Function |
|---|---|
| Sand Filter | Removes sediment, suspended solids |
| Carbon Filter | Removes chlorine, odor, organics |
| Cartridge Filter | 5μm fine filtration |
Essential protection for tap water and well water.
Feature 4: Industrial Grade Construction
- Heavy-duty steel frame — 700kg robust design
- FRP tanks — corrosion-resistant, durable
- Machine dimensions: 4000×800×2100 mm
- Designed for 24/7 continuous industrial operation
Feature 5: PLC Auto Control
- One-key start
- Auto flush
- Low pressure protection
- Fault alarm display
FAQ
1. What is the daily output?
4000 L/H equals approximately 96,000 gallons per day (about 96 tons), enough for 8,000-10,000 people.
2. What is the advantage of 8040 membranes over 4040?
Two 8040 membranes provide 74.4 m² of membrane area with only 2 housings. A comparable 4040 system would require 16 housings. This means: fewer components, less piping, lower leak risk, and much easier maintenance.
3. Does this system include a softener?
No. This is a standard 3-tank system (sand + carbon + cartridge) for tap water or low TDS well water. For high hardness water, we recommend our 4-tank model with softener.
4. What type of water can this system handle?
Tap water, well water, groundwater with TDS up to 2000 ppm and low to medium hardness.
5. What voltage is required?
Standard 380V / 50Hz (3-phase). 220V / 60Hz is available upon request.
6. How much floor space is required?
Approximately 8-10 square meters.
7. How long does installation take?
About 4-6 hours. The system comes pre-assembled — just connect water inlet, drain, and power.
8. What is the MOQ?
1 set. OEM customization available for bulk orders.
